Why Infinity Lifts?
Quality
A quality wheelchair lifting platform manufactured in Sweden by industry experts with over 50 years experience in the platform lift business.
02
Innovative Design
An innovative smart design which offers up to 55 platform sizes and a wide range of finishes.
03
Compliance
In full compliance with Machine Directive 2006/42/EC, EN81-40:2010 and EN81-58:2014
04
Why Infinity Lifts?
Ease of Installation
Quick and easy installation with minimum pit requirements.
05
Why Infinity Lifts?
Adaptable
The Innovation ILS is suitable for domestic and public use.

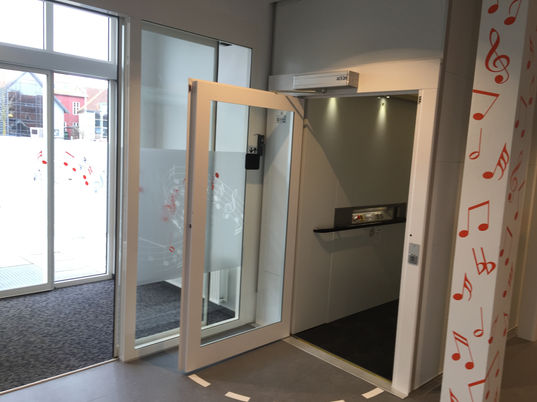

Some Snaps :)
02
Value for Money
We ensures that customers receive what they want and need with no hidden costs.
03
24/7 Assistance
Our phones are always on 24/7/365. We will always be there for you!
Why Infinity Lifts?
“As the leading Independent lift company in Ireland – our commitment to understanding the vertical transport needs of our customers has increased our focus and passion to enhance the quality of life and independence of each individual through our access for all product division”
- Garech McGuinness, CEO Infinity Lifts
Our Work Speaks For Us
.png)
“Infinity are professional, precise and a great team to work with. Their quality of workmanship, attention to detail and communication is excellent. What is truly refreshing is that I can phone Garech, Colm or any of the team and get an immediate pick up and response! I have no hesitation in recommending Infinity Lifts”.
– Bryan Quille, Monami Construction
Technical Details
Details outlined below provide an overview of the standard models available
Models
Model - ILS 05K
Technical Specification
Capacity :
Speed :
Travel Height :
Application :
Usage :
Drive system :
Control System :
Compliance :
Dimensions (Standard)
Platform (w x d) mm :
Structure (w x d) mm :
Pit depth :
500 kg max
0.15 m/sec
13 m (max.)
Residential and Commercial
Indoors only
Screw and nut
Constant pushbutton
Machinery Directive 2006/42/EC
EN 81-41;2010 Vertical Lifting Platform
EN-81-58;2014 Fire Resistant Doors
See brochure for non
standard options
1000 x 1500 / 1100 X 1400/
1100 X 1500 / 1100 X 1600
1370 X 1580 / 1470 X 1480 /
1470 x 1580 / 1470 x 1680
5O mm (ramp 50mm optional)
Model - ILS 1K
Technical Specification
Capacity :
Speed :
Travel Height :
Application :
Usage :
Drive system :
Control System :
Compliance :
Dimensions (Standard)
Platform (w x d) mm :
Structure (w x d) mm :
Pit depth :
1000 kg max
0.15 m/sec
13 m (max.)
Residential and Commercial
Indoors only
Screw and nut
Constant pushbutton
Machinery Directive 2006/42/EC
EN 81-41;2010 Vertical Lifting Platform
EN-81-58;2014 Fire Resistant Doors
See brochure for non
standard options
1000 x 1500 / 1100 X 1400/
1100 X 1500 / 1100 X 1600
1370 X 1580 / 1470 X 1480 /
1470 x 1580 / 1470 x 1680
5O mm (ramp 50mm optional)
