Why Infinity Lifts?
Quality of Life
An aid which improves the quality of life for persons with restricted movement or disabilities, the elderly or those in rehabilitation.
02
Accessibility
Compliant with Machine Directive 2006/42/EC in accordance with ISO 9386-1:2000. Suitable for new or existing buildings and ideal for listed buildings and protected structures.
03
Safety
State of the art safety features including 4 intelligent synchronised motors, infrared movement sensors and auto emergency lowering in the event of power failure.
04
Why Infinity Lifts?
Adaptable & Space Saving
Fits into the tightest spaces in residential buildings, both indoor or outdoor. A save spacing solution equally useful for pedestrians and wheelchair users.
05
Minimal Builders Work
Easy to install in new or existing buildings - no requirement for pit or machine room. A freestanding design that does not require a load bearing wall.
06
Aesthetics
Wide range of standard finishes available to complement existing décor or option to choose custom finishes to provide an exact match.

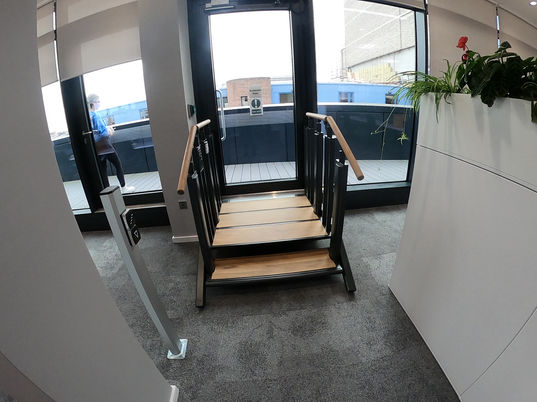

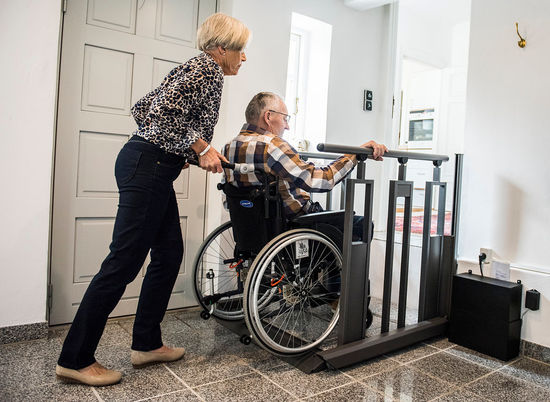

FLEXSTEP IN ACTION
Some Snaps :)
01
Authorised Distributor
Exclusive distributor of FlexStep by Liftup in Ireland
02
170+ Years of Experience
Senior management with a combined experience of more than 160+ years.
03
24/7 Assistance
Our phones are always on 24/7/365. We will always be there for you!
Why Infinity Lifts?
“As the leading Independent lift company in Ireland – our commitment to understanding the vertical transport needs of our customers has increased our focus and passion to enhance the quality of life and independence of each individual through our access for all product division”
- Garech McGuinness, CEO Infinity Lifts
Our Work Speaks For Us
.png)
“Infinity are professional, precise and a great team to work with. Their quality of workmanship, attention to detail and communication is excellent. What is truly refreshing is that I can phone Garech, Colm or any of the team and get an immediate pick up and response! I have no hesitation in recommending Infinity Lifts”.
– Bryan Quille, Monami Construction
Technical Details
Unparalleled Safety Features
Technical Specifications
Details outlined below provide an overview of the standard models available
However each model is available in hundreds of configurations and can be adapted accordingly to your needs with your exact requirements.
Product suitability is subject to site specific design analysis.
Models
2 Step Model
Configurations Available
2+1 Step
2+2 Step
Technical Specification
Capacity :
Speed :
Application:
Usage :
Installation width (mm) :
Platform step width (mm) :
Platform length (mm) :
Staircase length (mm) :
Lifting Height/Travel (mm) :
Compliance :
400kg
0.04 m/s
Domestic use only
Suitable for indoor and outdoor
1000/1100/1200/1300mm
700/800/900/1000mm
900mm-1210mm + turning circle
1410-1335mm
240-370mm
Machine Directive 2006/42/EC
3 Step Model
Configurations Available
3 Step
3 + 1 Step
Technical Specification
Capacity :
Speed :
Application:
Usage :
Installation width (mm) :
Platform step width (mm) :
Platform length (mm) :
Staircase length (mm) :
Lifting Height/Travel (mm) :
Compliance :
400kg
0.04 m/s
Domestic use only
Suitable for indoor and outdoor
1000/1100/1200/1300mm
700/800/900/1000mm
915mm-1190mm + turning circle
1145-1286mm
360-740mm
Machine Directive 2006/42/EC
4 Step Model
Configurations Available
4 Step
4 + 1 Step
Technical Specification
Capacity :
Speed :
Application:
Usage :
Installation width (mm) :
Platform step width (mm) :
Platform length (mm) :
Staircase length (mm) :
Lifting Height/Travel (mm) :
Compliance :
400kg
0.04 m/s
Domestic use only
Suitable for indoor and outdoor
1000/1100/1200/1300mm
700/800/900/1000mm
1220mm-1495mm + turning circle
1115-1240mm
480-925mm
Machine Directive 2006/42/EC
5 Step Model
Configurations Available
5 Step
Technical Specification
Capacity :
Speed :
Application:
Usage :
Installation width (mm) :
Platform step width (mm) :
Platform length (mm) :
Staircase length (mm) :
Lifting Height/Travel (mm) :
Compliance :
400kg
0.04 m/s
Domestic use only
Suitable for indoor and outdoor
1000/1100/1200/1300mm
700/800/900/1000mm
1525mm + turning circle
1345-1472mm
600-1110mm
Machine Directive 2006/42/EC
6 Step Model
Configurations Available
6 Step
Technical Specification
Capacity :
Speed :
Application:
Usage :
Installation width (mm) :
Platform step width (mm) :
Platform length (mm) :
Staircase length (mm) :
Lifting Height/Travel (mm) :
Compliance :
400kg
0.04 m/s
Domestic use only
Suitable for indoor and outdoor
1000/1100/1200/1300mm
700/800/900/1000mm
1830mm + turning circle
1593-1720mm
720-1250mm
Machine Directive 2006/42/EC
